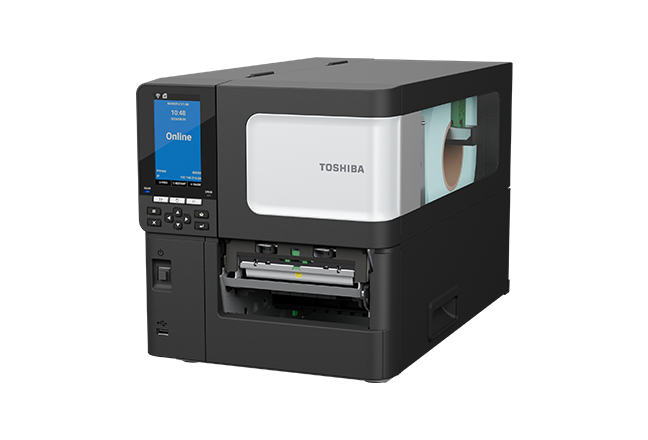

BX420D Barcode printer
Key Features
Efficient labelling, lower costs
The BX420D is a high-performance direct thermal printer built for fast, cost-effective labelling. Designed for short-life applications like shipping and retail, it eliminates ribbon use—reducing consumable costs and simplifying maintenance. Powered by A-BRID technology, it offers real-time PDF support and seamless system integration, making it ideal for logistics, retail, and warehouse operations. It’s the smart choice for businesses focused on efficiency and savings.
Key Features:
- Direct thermal printing – no ribbon, lower total cost of ownership
- Optimised for short-term labels, perfect for shipping, retail, and logistics
- A-BRID technology delivers fast, intelligent performance with real-time PDF support
- Seamless integration into existing systems with auto-emulation
- Cloud-ready with remote management and monitoring
Key Specifications
|
|
BX420D-GS |
|
Printing Method |
Direct thermal |
|
Print Head Type/Alignment |
Flat Head; Centre aligned |
|
Resolution |
203 dpi |
|
Memory |
1 GB RAM, 8 GB ROM |
|
Interface |
USB 2.0, Ethernet |
|
Print Width/Length |
111 mm / 1496 mm |
|
Print Speed |
12 ips (305 mm/sec) |
|
Dimensions & Weight |
310 (H) x 278 (W) x 460 (D) mm, 16.4 kg |
|
Standard Ribbon Lengths |
N/A |
|
Emulations |
Auto-detection of TPCL, ZPL II,DPL, SBPL, PDF |
|
Interface Options/Options |
Serial, Wireless LAN, RTC, USB 2.0 HS (USB host/ HID support), Disc Cutter, Peel-off & internal rewinder, Expansion I/O, External media guide |
Please contact us for further information. 01202 873366. info@logiksystems.co.uk
